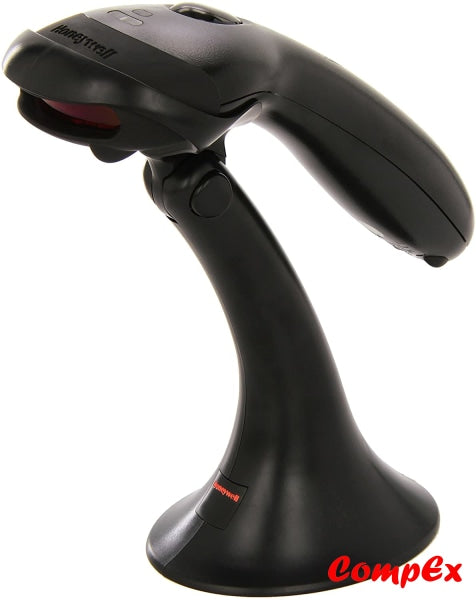

FeaturesHoneywell MK9540-37A38 Barcode Scanner is a single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar (formerly known as RSS codes). Use the scanner either as a handheld device or a fixed presentation scanner when mounted in the stand. Use the scanner either as a handheld device or a fixed presentation scanner when mounted in the stand. Uniting form with function, the Voyager series has become the industry benchmark for value and performance. Zero in on desired code and complete data transmission with the push of a single button – ideal for menu scanning applications (MS9540 only). For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.

FEATURES

SPECIFICATIONS

Mechanical
Dimensions (LxWxH)

• 198 mm x 78 mm x 56 mm (7.8 ̋ x 3.1 ̋ x 2.2 ̋)

Weight

• 149 g (5.3 oz)

Input Voltage

• 5 VDC + 0.25 V

Operating Power

• 825 mW (165 mA @ 5 V)

Standby Power

• 600 mW (120 mA @ 5 V)

Host System Interfaces

• USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation

Operating Temperature

• 0°C to 40°C (32°F to 104°F)

Storage Temperature

• -40°C to 60°C (-40°F to 140°F)

Humidity

• 5% to 95% relative humidity, non-condensing

Drop

• Designed to withstand 1.5 m (5’) dropsvironmental Sealing

Sealed to resist airborne particulate contaminants

Light Levels

• 4842 Lux

Scan Pattern

• Single scan line

Scan Speed

• 72 scan lines per second

Scan Angle

• Horizontal: 50°

Print Contrast

• 35% minimum reflectance difference

Pitch, Skew

• 68°, 52°

Decode Capabilities

• Reads standard 1D and GS1 DataBar symbologies
