Access Point
FEATURED PRODUCTS - Access Point

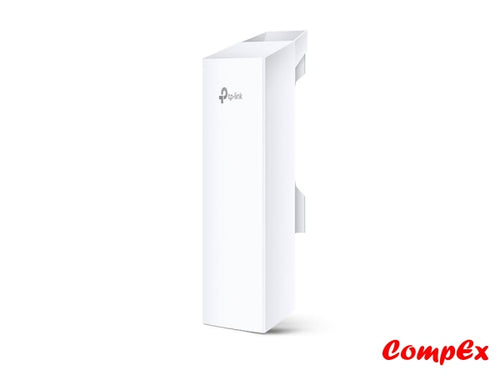

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Features
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

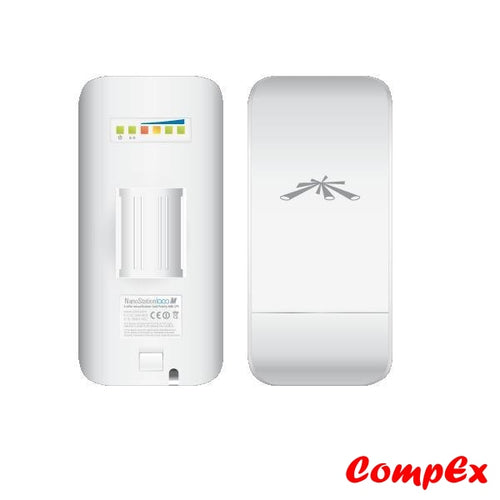

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
150+ Mpbs real outdoor throughput and up to 15km+ range.
Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
Next Gen Antenna Design:
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.
Dual Ethernet Connectivity:
Secondary ethernet port with software enabled POE output for seamless IP Video integration.
Intelligent POE design:
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.
AirOS V: Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Features:
- High Performance MIMO 2x2 TDMA Architecture
- Extended Outdoor Range
- Ubiquiti AirOS software
- External status LEDs
- External reset button
- Pole, Wall or Window mount options
Specification:
- 26 dBm / 400mW +/- 2dB high power 802.11b/g Atheros AR2316 SOC
- MIPS 24KC, 400MHz
- 32MB SDRAM, 8MB Flash
- 2 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface
- FCC Part 15.247, IC RS210, CE
- Rx Sensitivity: -97dBm +/-2dB
- Integrated 2x2 MIMO Antenna:
- Frequency Range: 2.32-2.55 GHz
- Gain: 10.4-11.2 dBi
- Polarization: Dual linear
- H-pol Beamwidth: 55°
- V-pol Beamwidth: 53°
- Elevation Beamwidth: 27°
- Maximum Power Consumption: 8 Watts
- Dimensions: 26.4 cm x 8 cm x 3 cm
- Weight: 0.4 kg
- Enclosure: Outdoor UV Stabilized Plastic
- Pole Mounting Kit included
- Power Supply: 24V, 0.5A surge portection integrated POE adapter included
- Power Method: Passive PoE (pairs 4,5+; 7.8 return)
- Operating Temp: -30°C to +80°C
- Shock and Vibration: ETSI300-019-1.4
- RoHS Compliant: Yes

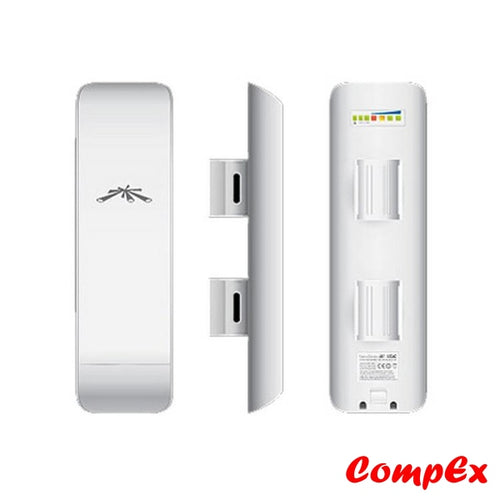

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
150+ Mpbs real outdoor throughput and up to 15km+ range.
Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
Next Gen Antenna Design:
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.
Dual Ethernet Connectivity:
Secondary ethernet port with software enabled POE output for seamless IP Video integration.
Intelligent POE design:
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.
AirOS V:
Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Features:
- High Performance MIMO 2x2 TDMA Architecture
- Extended Outdoor Range
- Ubiquiti AirOS software
- External status LEDs
- External reset button
- Pole, Wall or Window mount options
Specification:
- MIPS 24KC, 400MHz
- 32MB SDRAM, 8MB Flash
- 2 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface
- FCC Part 15.247, IC RS210, CE
- Integrated 2x2 MIMO Antenna:
- Frequency Range: 4.9-5.9 GHz
- Gain: 14.6-16.1 dBi
- Polarization: Dual Linear
- Cross-Polarization Isolation: 22 dB minimum
- H-pol Beamwidth: 43°
- V-pol Beamwidth: 41°
- Elevation Beamwidth: 15°
- Maximum Power Consumption: 8 Watts
- Dimensions: 26.4 cm x 8 cm x 3 cm
- Weight: 0.4 kg
- Enclosure: Outdoor UV Stabilized Plastic
- Pole Mounting Kit included
- Power Supply: 15V, 0.8A surge portection integrated POE adapter included
- Power Method: Passive PoE (pairs 4,5+; 7.8 return)
- Operating Temp: -30°C to +80°C
- Shock and Vibration: ETSI300-019-1.4
- RoHS Compliant: Yes

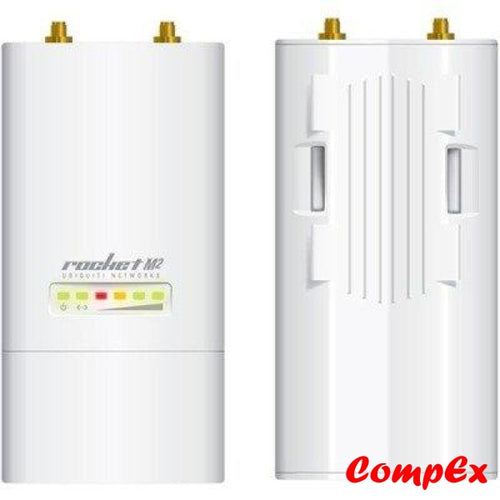

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.
Rocket M and airMAX Rocket antennas have been designed to seamlessly work together. Installing Rocket M on airMAX Rocket antennas requires no special tools, you simply snap it into place with the mount provided with the antennas.
ROCKET M2: 802.11N MIMO 2.4GHz Rocket AP 2.4GHz Hi Power 2x2 MIMO airMAX TDMA basestation.
Rocket M2 Specifications:
- Processor Specs: Atheros MIPS 24 KC, 400MHz
- Frequency: 2.4Ghz Channels 1-11
- Memory Information: 64MB SDRAM, 8MB Flash
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
- Approvals: FCC Part 15.247, IC RS210, CE
- RoHS Compliance: YES
- RF Connector: 2x RPSMA (Waterproof)
- Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Includes:
- Rocket M2
- 24V PoE Adapter and Power Cord
- Mount and mounting strap
